Volvo VAH, VHD, VN, VT Truck Electrical Wiring Schematics (Web Access – 1 year)

Covers: Volvo VAH, VHD, VN, VT trucks with build dates from August 1996 to December 2017 – North America only
Format: Digital subscription – web access

1-year subscription term (non-recurring) to Volvo truck wiring for VAH, VHD, VN, VT models built August 1996 through August 2017. Includes updated Gen 2 interior models. You will receive login credentials within 24 hours to access our portal with the wiring diagrams. Conveniently access them from anywhere with a computer and internet access.

Requirements:

• Web browser – Internet Explorer, Chrome, Firefox, Safari
• Internet connectivity

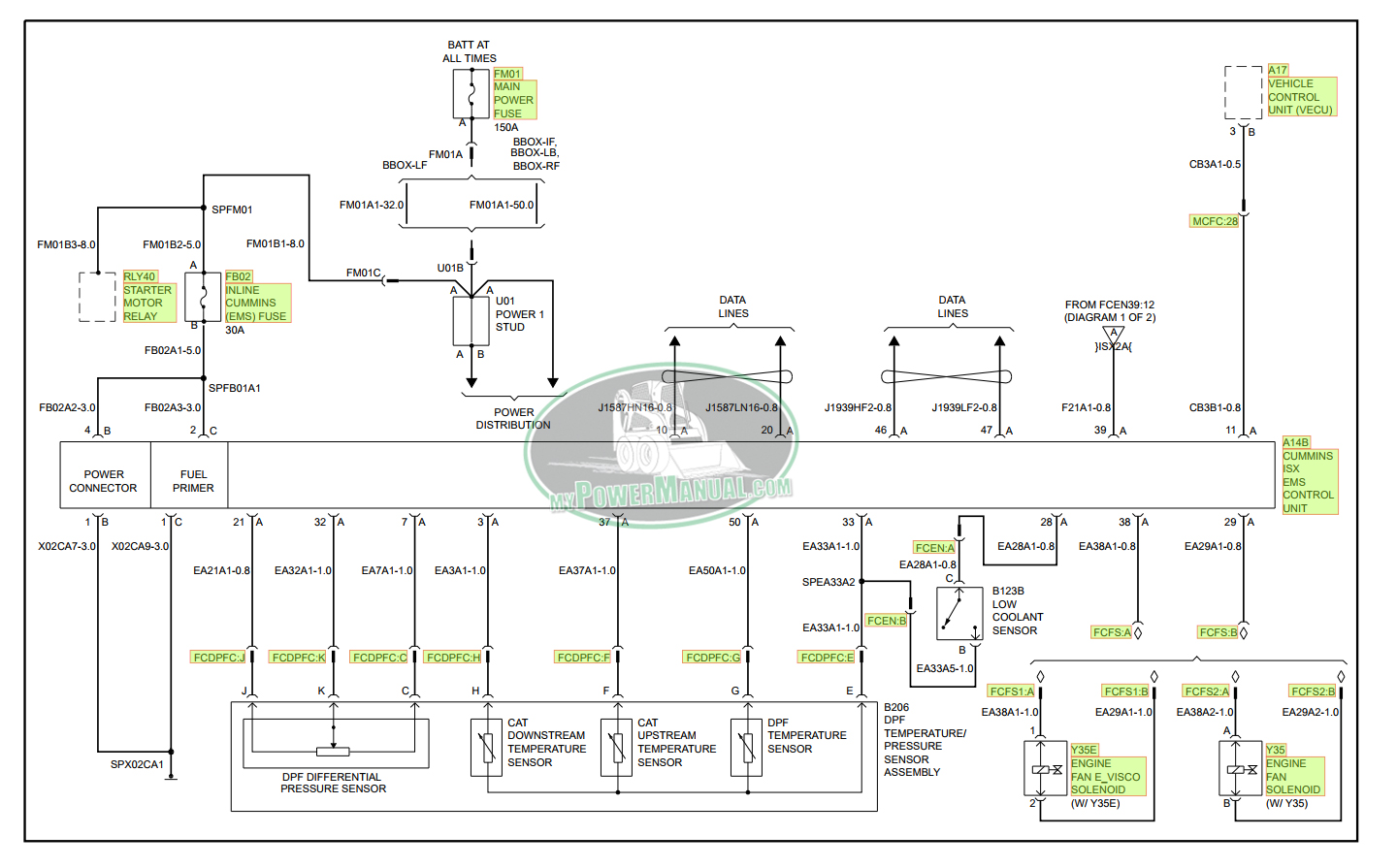

Sample diagrams included:

Aftertreatment	Electronic Suspension	Power Distribution
Air Conditioning & Heating	Engine Controls	Power Door Locks & Power Windows
Anti-Lock Brakes & Traction Control	Ground Distribution	Sleeper Circuits
Body Builder Interface	Horns & Power Outlets	Starting & Charging
CB Posts & Audio Systems	Index	Transmission Controls
Communications	Junction Block, Trailer Cable	Vehicle Control Unit
Cruise Control	Lighting, Exterior	Windshield Wiper/Washer
Dash Cluster	Lighting, Interior
Data Link	Miscellaneous Circuits
