Detroit MBE 900 MBE 4000 EPA98/04 Troubleshooting Manual

Covers: Detroit MBE 900 and MBE 4000 EPA98/EPA04 Troubleshooting
Pages: 366
Format: PDF
File size: 3mb
Works with: Windows/Mac/Tablet/Smartphone
Notes: Bookmarked, searchable, printable, instant download

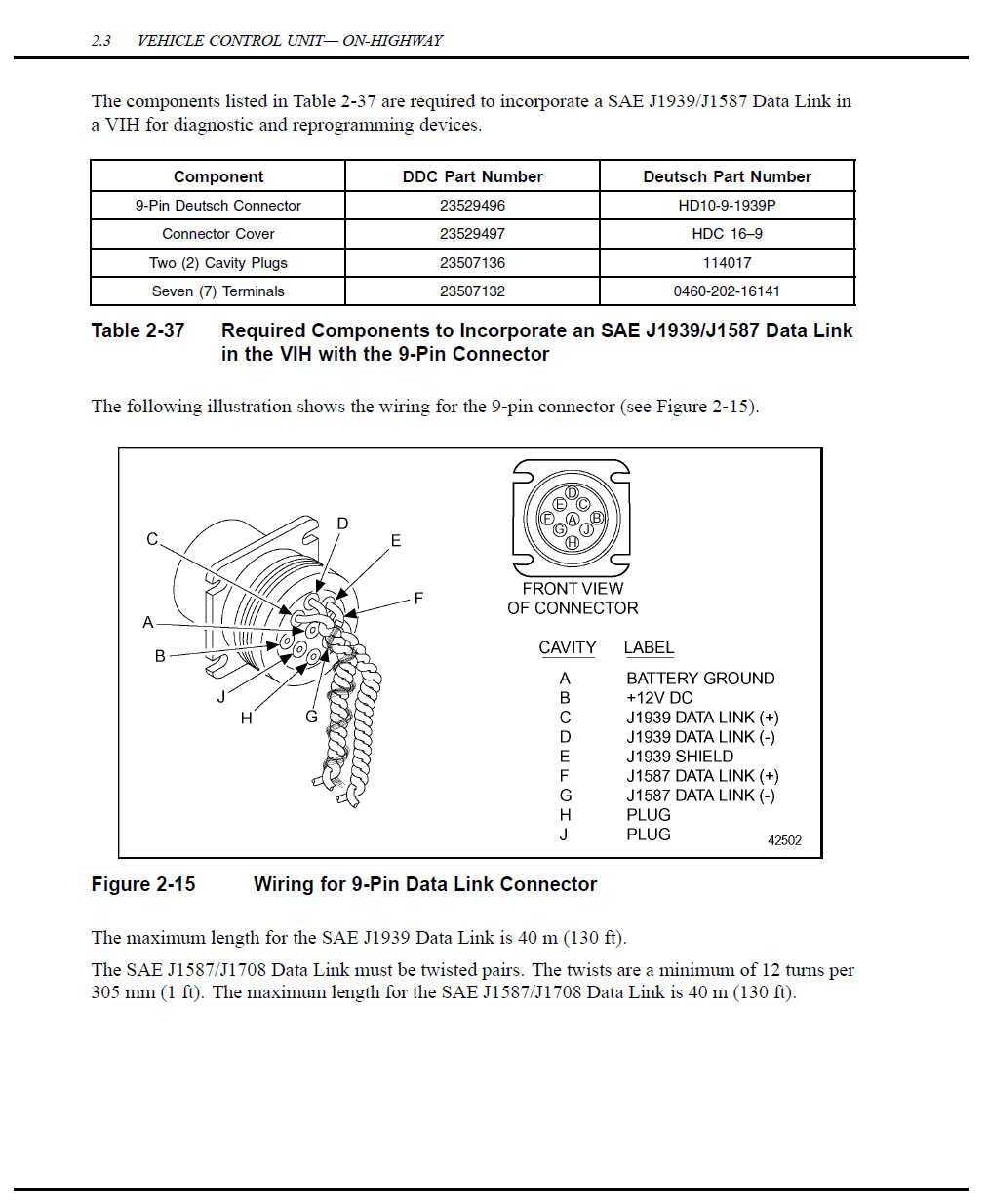

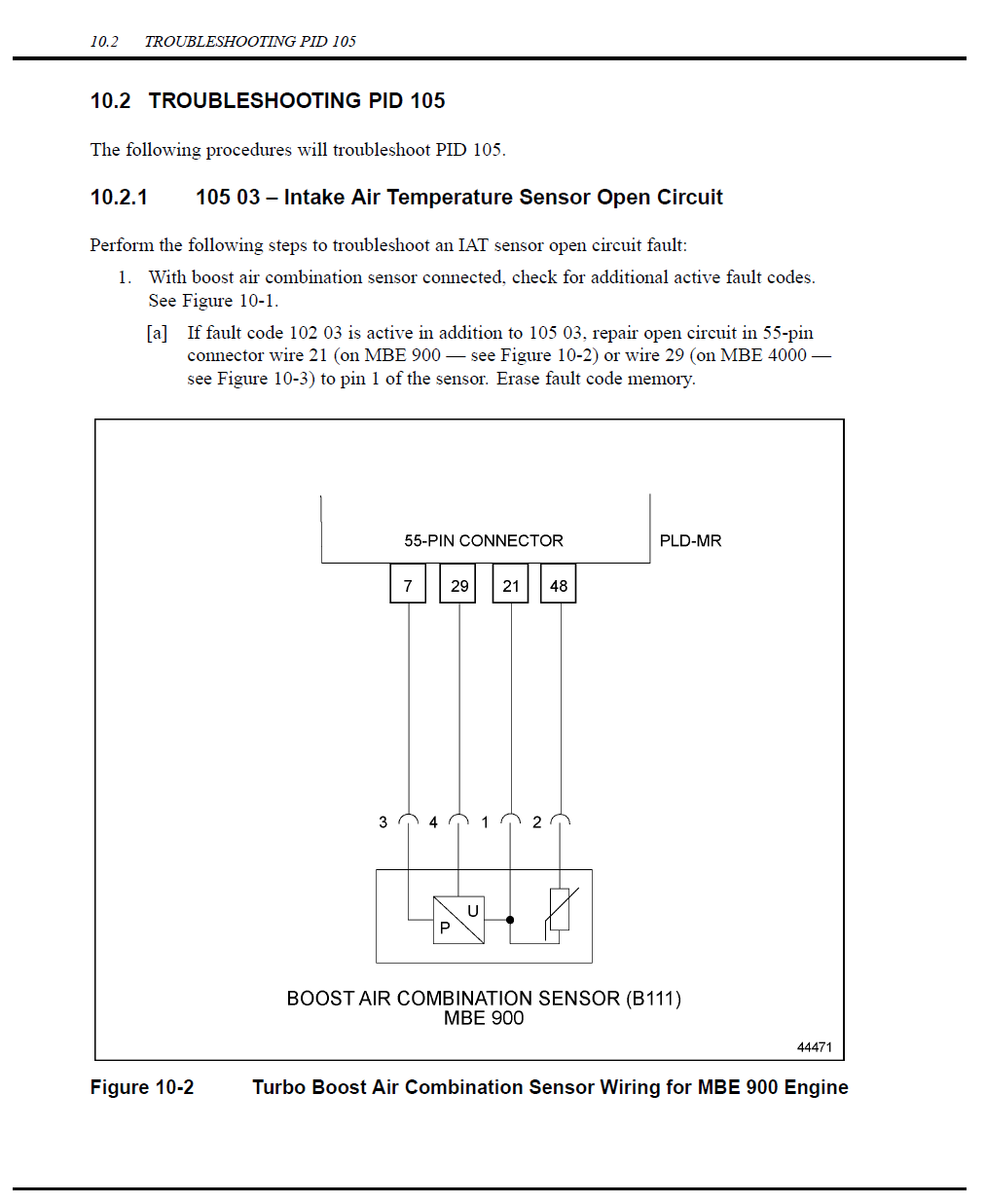

This troubleshooting manual contains OEM fault code descriptions and diagnostic procedures for Detroit Diesel MBE 900 & MBE 4000 engines with EPA98/EPA04 emissions. Detailed factory illustrations and procedures are included to help you with correctly diagnosing and troubleshooting the electronic engine controls.

Delivered immediately after checkout, the high-resolution PDF can be saved and viewed on your computer, tablet, and smartphone. Whether you’re in the shop or at the truck being serviced, you will have convenient access to the technical information you need to get the job done.

Topics:

Introduction

Electronic Components and Wiring Schematics

• Overview
• PLD-MR – Engine-Resident Control Unit
• Vehicle Control Unit— On-Highway
• Wires and Wiring
• Conduit and Loom
• Tape and Taping
• Sensors
• Grid Heater
• Cruise Control Circuit
• Engine Fan
• Parking Brake Switch
• Vehicle Power Shutdown — Optional
• Starter Lockout
• Accelerator Pedal Installation

Operation

Fault Code Troubleshooting

• PID 45
• PID 84
• PID 91
• PID 100
• PID 102
• PID 103
• PID 105
• PID 110
• PID 111
• PID 158
• PID 168
• PID 174
• PID 175
• PID 190
• SID 1–6
• SID 21
• SID 57
• SID 58
• SID 59
• SID 60
• SID 64
• SID 146
• SID 230
• SID 232
• SID 233
• SID 242
• SID 243
• SID 248
• SID 254

Publication number 6SE422 dated 2004.
